Specifications

Ports Full Port
Body Style

One-Piece Ball/Stem
Flanged: MPF15/30/60
Threaded: MPT30
Tri-Clamp: MPC15
Size Range

3⁄4“–14″ Flanged Ends
(MPF60 only available in 2″–8″)
1⁄2“–4″ NPT & Tri-Clamp
Temperature Range

Up to 550°F
Highly Dependent on seat material, please consult factory.
Pressure Ratings

MPF 15: ANSI/CLASS 150
MPF 30: ANSI/CLASS 300
MPF 60: ANSI/CLASS 600
MPT30: 800 WOG
MPC15: 150 WOG
End Connections Flanged, Threaded, Tri-Clamp
Body Materials Stainless Steel – ASTM A351 CF8M
Carbon Steel – ASTM A216 WCB
Seat Materials

TFM
Applications

Extremely Versatile Design for Flow Diversion or Mixing.
Flo-Tite’s Standard Part Numbers MPF15-SS-L-FFG-L (150# SS L-Port)
MPF15-SS-T-FFG-L (150# SS T-Port)
MPF15-CS-L-FFG-L (150# CS L-Port)
MPF15-CS-T-FFG-L (150# CS T-Port)
MPF30-SS-L-FFG-L (300# SS L-Port)
MPF30-SS-T-FFG-L (300# SS T-Port)
MPF30-CS-L-FFG-L (300# CS L-Port)
MPF30-CS-T-FFG-L (300# CS T-Port)

    Enquire Now

    Details

    Design Features:

    • One Piece Ball/Stem Trunnion – Supported Type
    • Three Seat Design Maintains Proper Ball Position, four Seat Design Optional
    • Actuator Mounting Flange ISO-5211
    • Anti-Static Grounding Device
    • Open And Closed Locking Device for Positional Safety Lockout to 6”, 8”, 10”, and 12” Optional
    • Flow Plans for Both T & L Ports can be field rearranged to meet many other Flow Options.
    • Both T & L Valves can be offered with an off position.
    • Body Cavity fillers for sizes 3/4” – 6”
    • Full Port 1/2” – 12”, Standard Bore 6” – 12”
    • Handle Operated 1/2”-4”, 6” &Larger, Gear Operator Standard

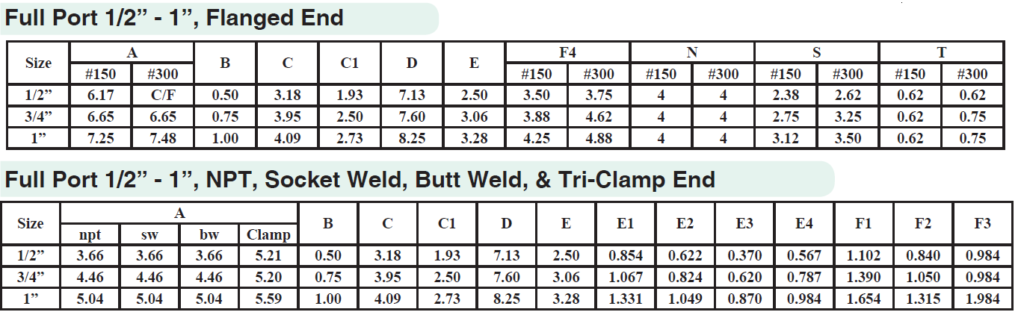

    BOM

    Item Component Stainless Steel Carbon Steel Qty
    1 Body ASTM A351 CF8M ASTM A216 WCB 1
    2 End Caps ASTM A351 CF8M ASTM A216 WCB 3
    2a Back Cover ASTM A351 CF8M ASTM A216 WCB 1
    3 Ball SS316 SS304 / SS316 1
    4 Stem SS316 SS304 / SS316 1
    5 Seats # TFM TFM 4
    6 Stem Packing # TFM / Graphite TFM / Graphite 1
    7 Body Gaskets # 50/50 / Graphite 50/50 / Graphite 4
    8 Thrust Washer # 50/50 50/50 1
    9 Packing Follower SS304 SS304 1
    10 Belleville Washer SS301 SS301 2
    11 Stem Nut SS304 SS304 1
    12 Handle SS304 SS304 1
    13 Handle Lock SS304 SS304 1
    14 Handle Sleeve Plastic Plastic 1
    15 Handle Nut SS304 SS304 1
    16 Body Bolts ASTM A193 B8 ASTM A193 B7 16
    17 Handle Stop Bolt SS304 SS304 1
    18 Anti-Static Springs SS316 SS316 2
    19 Anti-Static Balls SS316 SS316 2
